The right angle configuration allows cables to be routed parallel to the PCB or device surface, reducing space requirements and improving cable management in tight enclosures.The snap-on coupling mechanism enables fast mating and unmating without the need for threaded tightening. This feature reduces installation time and maintenance efforts.Supporting frequencies up to 4 GHz (and beyond in some designs), SMB connectors are suitable for a broad spectrum of RF applications, including GPS, telecommunications, and instrumentation.
| Parameter | Value |
| Article No. | SMB-75JWHD-5 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 75Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 750V |
| Rated Power | 1000W |
| Connector Type | SMB-Male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

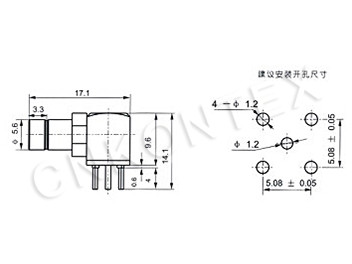

| Outer Dimension | 17*14*6.5mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
