Key Performance of SMC RF Connectors
|
Temperature range |
-65~+165℃ |
Voltagerating |
250V |
|
Characteristic impedance |
50Ω |
Dielectnic withstanding voltage |
750V |
|
Frequency range |
0~11GHz |
VSWR |
≤1.25 |
|
≤1.35 |
|
Iinsulation resistance |
≥1000mΩ |
Durability |
500 Cycles |

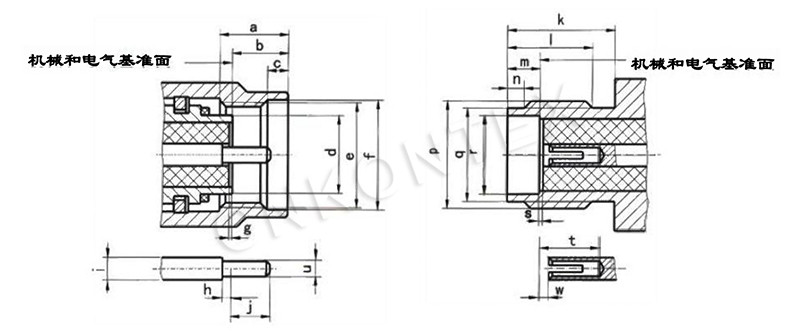

Interface Mating Dimensions of SMC RF Connectors
|
NO. |
DIMENSION (mm) |
NO. |
DIMENSION (mm) |
|
A |
φ0.25MAX. |
F |
3.4 MIN. |
|
B |
φ0.48~φ0.53 |
G |
0MIN. |
|
C |
φ2.08 MIN. |
H |
0.25 MIN. |
|
D |
φ3.71 MAX. |
J |
2.13 MAX. |
|
E |
3.4 MIN. |
K |
5.94 MIN. |
|
NO. |
DIMENSION (mm) |
|
A |
∅ 2.06 MAX. |
|
B |
∅ 3.71 MIN. |
|
C |
3.1 MAX. |
|
D |
2.79 MIN. |
|
E |
5.92 |
|
F |
3.4 MAX. |
|
G |
3.4 MAX. |
|
H |
0 MIN. |
