Thanks to its snap-on coupling mechanism, SMB connectors allow technicians to connect and disconnect cables swiftly without specialized tools. This feature minimizes downtime during maintenance and installation.Manufacturers often use brass bodies with gold plating for enhanced conductivity and corrosion resistance.
| Parameter | Value |
| Article No. | SMB-KW2-1 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 750V |
| Rated Power | 1000W |
| Connector Type | SMB-Female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

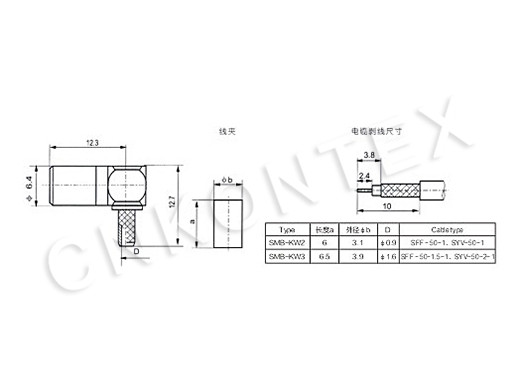

| Outer Dimension | 17*12.7*6.5mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
