According to Amphenol RF’s product specifications, the SMB straight crimp plug supports multiple cable types such as RG-55, RG-142, RG-223, and RG-400, with gold-plated brass bodies and beryllium copper contacts. These materials ensure excellent conductivity and corrosion resistance while operating reliably up to 4 GHz.
| Parameter | Value |
| Article No. | SMB-K2-1 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 750V |
| Rated Power | 1000W |
| Connector Type | SMB-Female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

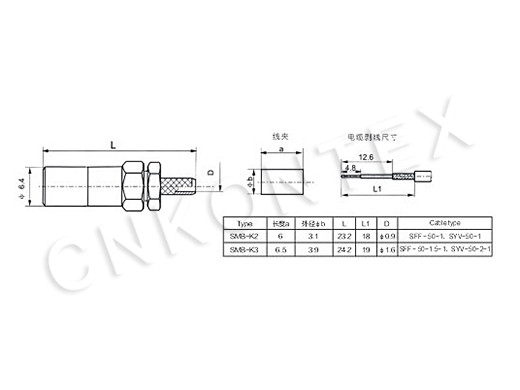

| Outer Dimension | 25*9mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
