Electrical Performance
|
Parameter |
Value |
|
Article No. |
F-75KY-20D |
|
Frequency range |
2~2150MHz |
|
Impedance |
75±1.5Ω |
|
Return loss |
≤-16dB |
|
Withstanding Voltage |
1000V |
|
Standing wave ratio |
≤1.3dB |
|
Connector Type |
F connection female connector |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|
Outer Dimension |
44*13mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-40℃～+70℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Tin plating |
|
Outer conductor |
Zinc alloy |
Nickeling |
|
Dielectric |
PC |
/ |
|
Salt Mist |
|
100H |
|
Weight |
|
6g |
Packing
|
Standard |
2000pc/plastic bag in separate carton |

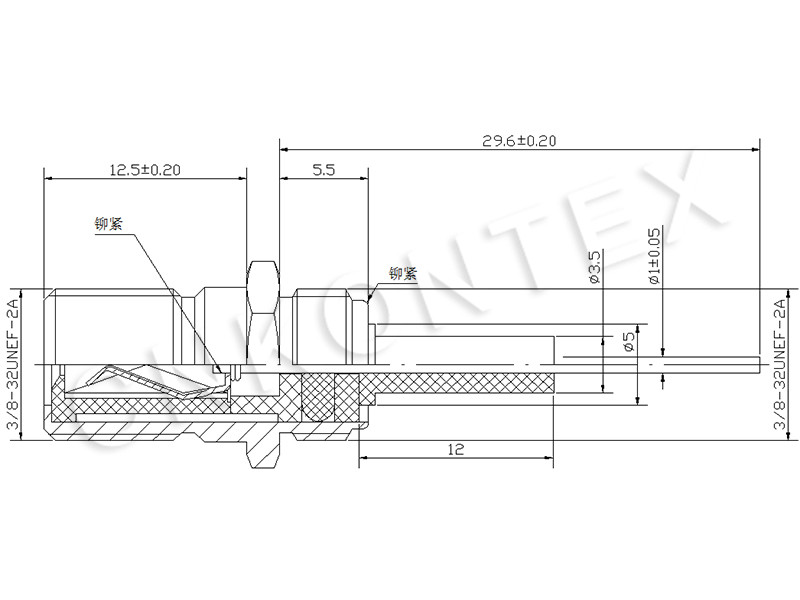

Remark：Dimensions are in mm with tolerance of ±0.10
