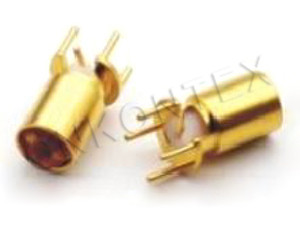

How to Choose the Right SMP Connector
When selecting an SMP connector for your application, consider the following factors:
Frequency Requirements: Ensure the connector supports your system’s operational frequency.
Detent Type: Choose between full detent, limited detent, or smooth bore based on retention force and mating cycles.
Connector Configuration: Determine if a straight, right-angle, or panel mount design best fits your layout.
Cable Compatibility: Match the connector to your cable type (e.g., semi-rigid RG-405 or conformable cables).
Environmental Conditions: Verify temperature range, vibration, and shock resistance requirements.
Assembly and Maintenance: Consider ease of assembly, availability of tooling, and replacement options.
Assembly and Installation Tips
Proper assembly is crucial to maintain SMP connector performance:
Use recommended assembly tools such as soldering vises, contact holders, and bullet extraction tools.
Follow precise cable preparation steps to avoid damaging the center conductor or dielectric.
Apply minimal solder and heat during the soldering process to prevent melting or deformation.
Ensure correct alignment of contacts and cable stops for optimal electrical contact and mechanical stability.
Utilize interface location fixtures to control contact location relative to the reference plane.
