Electrical Performance of Right Angle SMP Plug
|
Parameter |
Value |
|
Article No. |
SMP-JWHD-8 |
|
Frequency range |
0~12.4GHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.3 |
|
Withstanding Voltage |
1000V |
|
Rated Power |
100W |
|
Connector Type |
SMP-male interface |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|
Outer Dimension |
8.4*9*6mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-40℃～+125℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Silver |
|
Dielectric |
PTFE |
/ |
|
Salt Mist |
|
96H |
Packing of SMP Right Angle Plug PCB Solder
|
Standard |
3600pc/plastic bag in separate carton |

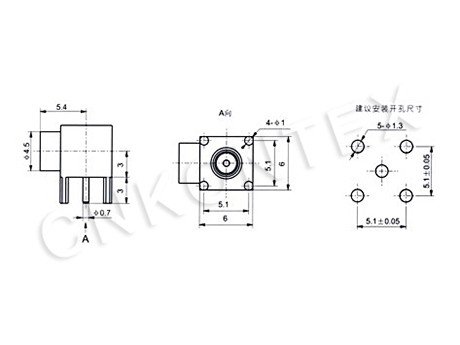

Remark：Dimensions are in mm with tolerance of ±2%.
Kontex Electronics presents the SMB Right Angle Male PCB Connector KTX SMP-JWHD-8, a high-quality RF coaxial connector designed for PCB mounting. This 90° angle connector features a brass body with gold plating, through hole mounting, and a snap-on coupling design for fast installation. With a frequency range of 0~12.4GHz, 50Ω impedance, and VSWR ≤1.3, it delivers exceptional electrical performance. The SMB Right Angle Male PCB Connector is ideal for various RF applications requiring reliable signal transmission in tight spaces.
