An RF panel connector is a specialized type of radio frequency connector designed to be mounted securely on panels or chassis. These connectors facilitate the transmission of RF signals between devices, ensuring minimal signal loss and interference. Unlike cable connectors, panel connectors are fixed in place, providing a stable interface for connecting cables or other components.
| Parameter | Value |
| Article No. | TNC-50KFT |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | TNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

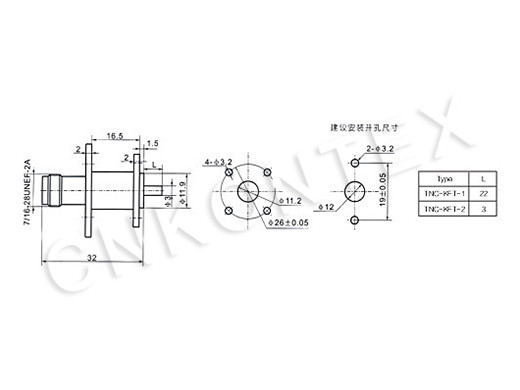

| Outer dimension | 54*25mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 300pc/plastic bag in separate carton |
