TNC connectors are available in both male and female genders, with the female connector featuring a threaded outer shell that mates with the male’s threaded coupling nut. The female variant is often used in bulkhead mounts, printed circuit boards (PCB), or cable terminations.
| Parameter | Value |
| Article No. | TNC-50KWFD9 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | TNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

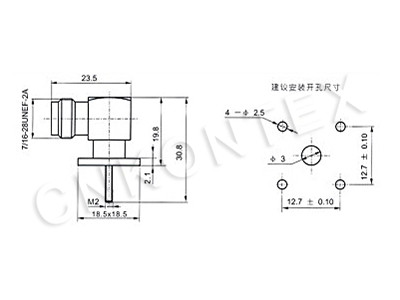

| Outer dimension | 25*30.8*18.5*18.5mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 200pc/plastic bag in separate carton |
