In the world of RF (radio frequency) connectivity, the TNC panel mount connector stands out as a reliable and versatile solution for secure, high-performance connections. Whether you’re working with antennas, wireless systems, or industrial communication equipment, the TNC panel mount connector offers durability, excellent signal integrity, and ease of installation.
| Parameter | Value |
| Article No. | TNC-50KFD2 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | TNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

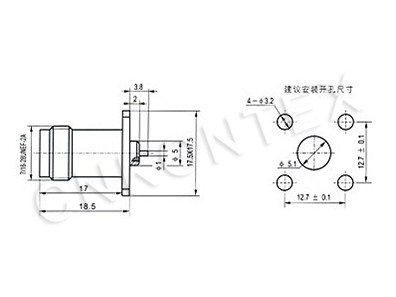

| Outer dimension | 24.3*17.5*17.5mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
