The TNC (Threaded Neill-Concelman) Plug RF Connector is a type of miniature coaxial connector designed to provide a secure, threaded coupling mechanism that ensures a reliable connection even in vibration-prone environments. It is a weatherproof connector with a constant impedance of 50 ohms, typically operating within a frequency range of DC to 11 GHz, with some extended designs supporting up to 18 GHz.
| Parameter | Value |
| Article No. | TNC-50KY |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | TNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

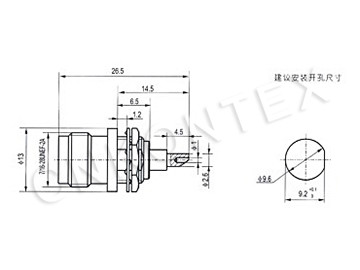

| Outer dimension | 26.5*13mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
