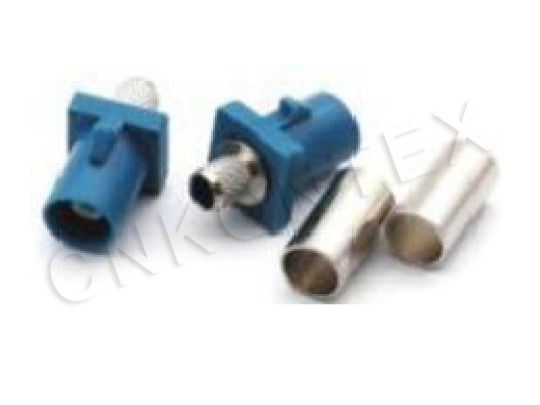

When setting up or upgrading a video surveillance system, many people are stumped by the choice of cable connectors—clearly, they are all cables for connecting surveillance, so why do the interface shapes differ so much? Will choosing the wrong one cause or control failures? In fact, different connectors correspond to different system requirements; understanding their uses allows you to quickly avoid selection pitfalls.

I. Common Types of Video Surveillance Cable Connectors and Their Core Uses

The design of video surveillance cable connectors essentially aims to match signal types and system scenarios. Here are the 6 most commonly used connectors to help you understand them one by one:

1. BNC Interface: The Stability Expert for Traditional Analog Surveillance

The BNC interface is a classic choice for analog surveillance systems, commonly found in scenarios such as old residential areas and factories that require long-distance transmission. Its advantages are clear:

- Strong anti-interference ability: Effectively reduces external electromagnetic interference, preventing snowflakes or horizontal stripes from appearing on the screen;

- Stable transmission: Maintains the clarity of analog signals even when the distance exceeds 100 meters;

- Simple installation: Rotary bayonet design, not easy to loosen after being plugged in tightly.

If your surveillance system uses traditional analog cameras (such as old devices with coaxial cables), choosing the BNC interface is definitely correct.

2. RJ45 Interface: The Convenient First Choice for Network Surveillance

The RJ45 interface is what we often call the network cable interface and is the core connector for digital network surveillance systems. Its characteristics are:

- Direct network connection: Can be plugged into a switch, router, or NVR (Network Video Recorder) without additional adapter cables;

- Flexible expansion: Want to add cameras? As long as the switch has free ports, you can directly connect a network cable to expand;

- Supports high definition: When used with network cameras, it can transmit 1080P or even 4K digital video signals.

Almost all newly built surveillance systems (such as home smart cameras) now use the RJ45 interface.

3. VGA/DVI/HDMI Interfaces: Display Interfaces for High-Definition Image Output

The role of these three interfaces is unified—to transmit surveillance images to a monitor or projector. Their differences are:

- VGA: Commonly used in older monitors, suitable for transmitting standard-definition or 1080P images;

- DVI: Clearer than VGA, suitable for connecting computer monitors or older high-definition screens;

- HDMI: Currently the most commonly used high-definition interface, supporting 4K image quality and synchronous audio transmission (for example, when surveillance images have sound, HDMI can directly output to a TV).

In short, if you need to project surveillance images onto a screen (such as a monitor in a security room or a projector in a conference room), choose these three interfaces, with HDMI being the priority (best compatibility).

4. RS485 Interface: The Command Line for Camera Control

The RS485 interface does not transmit video but transmits control signals—for example, if you want to remotely control the camera to turn direction (pan-tilt rotation) or zoom in on the lens (zoom), you need to use the RS485 interface. Its advantages are:

- Long-distance control: Even if the camera is installed 1000 meters away, it can be remotely operated via an RS485 cable;

- Multi-device linkage: One RS485 cable can control multiple cameras, saving wiring costs.

If your camera has pan-tilt or zoom functions (such as the dome camera at the entrance of a community), be sure to leave a cable with an RS485 interface.

5. Audio Interface: The Sound Conduit for Voice Intercom

The audio interface is specifically used to transmit sound signals, such as:

- Cameras with microphones (capable of recording on-site sound) need to use audio cables to transmit sound to the recorder;

- To achieve voice intercom (for example, security personnel shouting Please register at the door through surveillance), an audio interface is required to connect the camera to a microphone/speaker.

Note: Audio interfaces are usually 3.5mm headphone jacks or RCA jacks; when selecting, ensure they match the device interface.

6. Alarm Interface: The Trigger Line for Linked Alarms

The alarm interface is for transmitting alarm signals—for example, if a camera detects someone breaking in, it will trigger an audible and visual alarm through the alarm line; or after a door magnetic or infrared sensor is triggered, it can make the surveillance system automatically record via the alarm interface.

Its role is to connect surveillance and alarm to achieve immediate reminders for abnormal situations, suitable for scenarios requiring 24-hour vigilance (such as warehouses and stores).

II. How to Quickly Choose the Right Video Surveillance Cable Connector?

There's no need to remember complex parameters when choosing a connector; just ask yourself 3 questions:

1. Is your surveillance system analog or network?

- Analog system → priority BNC interface;

- Network system → priority RJ45 interface.

2. What signal do you need to transmit?

- Video images → BNC/RJ45/VGA/DVI/HDMI;

- Control cameras → RS485;

- Sound → audio interface;

- Alarm → alarm interface.

3. What is the transmission distance?

- Over 100 meters → choose BNC (analog) or RJ45 (network, need to use Cat6 cable);

- Short distance (such as home use) → choose arbitrarily, priority RJ45 or HDMI.

Summary: Only When the Connector is Chosen Correctly Can the Surveillance Work Well

The essence of a video surveillance cable connector is a signal bridge—if chosen correctly, the image is clear and control is sensitive; if chosen incorrectly, it either won't work or the effect is poor. Remember: First clarify your needs (what signal to transmit, what scenario to use it in), then select the corresponding connector, and you can avoid 90% of selection problems.

If you're still unsure, you might as well make a list first: Does my surveillance need to transmit video/control/sound/alarm? What's the distance? Is the system analog or network? Providing this information to the merchant can also quickly get suitable recommendations.
