Connector Types for Coaxial Cable Assemblies
Connector compatibility is crucial to maintain signal integrity and ensure proper device interfacing. Here are the most common types:

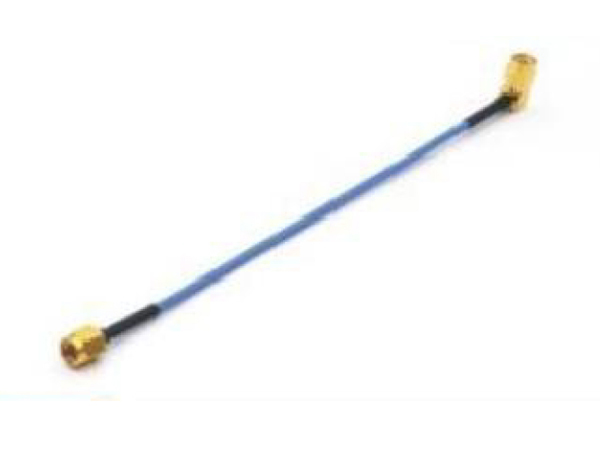

SMA (SubMiniature version A): Compact, up to 18 GHz frequencies, used in WiFi, LTE, GPS.
RP-SMA (Reverse Polarity SMA): Prevents accidental connections, common in consumer WiFi.
N-Type: Robust, weatherproof, used in outdoor antennas and base stations.
TNC (Threaded Neill–Concelman): Threaded, vibration resistant.
BNC (Bayonet Neill–Concelman): Quick connect/disconnect, CCTV and test equipment.
MCX/MMCX: Micro connectors for compact devices.
F-Type: Cable TV and broadband.
7/16 DIN: Large, rugged, high-power RF transmission.
4.3-10 and 2.2-5: Modern, compact, low PIM connectors for 4G/5G infrastructure.
