The BNC male panel mount connector stands out as a trusted solution, offering robust performance in various industrial, commercial, and consumer applications. Whether you’re working with antennas, CCTV systems, broadcast equipment, or telecommunications infrastructure, understanding the features and benefits of this connector can dramatically improve your system’s efficiency and durability.
| Parameter | Value |
| Article No. | BNC-JFD-1 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | BNC male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

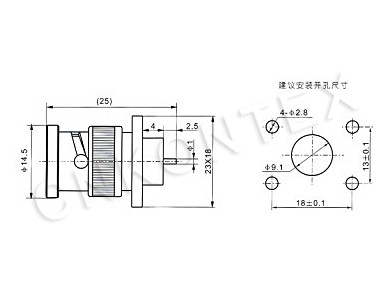

| Outer dimension | 25*23*18mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 1000pc/plastic bag in separate carton |
