Among the myriad of connectors available, the BNC RF coaxial connector stands out for its reliability, ease of use, and versatility. Originally designed for military applications, this compact bayonet-style connector has become a staple across industries—from telecommunications and broadcasting to aerospace and test equipment.
| Parameter | Value |
| Article No. | BNC-J3 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω±1.5Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Rated power | 100W |
| Connector type | BNC male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

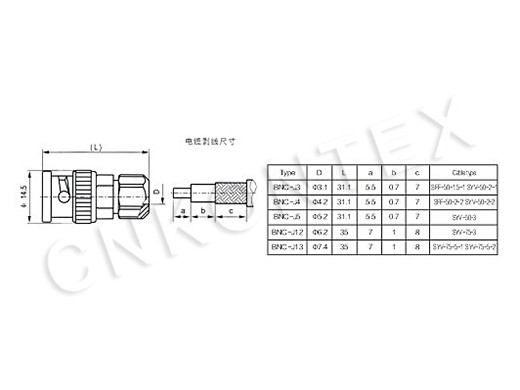

| Outer dimension | 35*15mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 1000pc/plastic bag in separate carton |
