A BNC (Bayonet Neill–Concelman) Straight Crimp Plug is a type of RF connector used primarily for coaxial cables. It features a bayonet coupling mechanism that allows for quick and secure connections with just a quarter turn, making it ideal for applications where reliability and speed are critical.
| Parameter | Value |
| Article No. | BNC-JB2 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | BNC male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

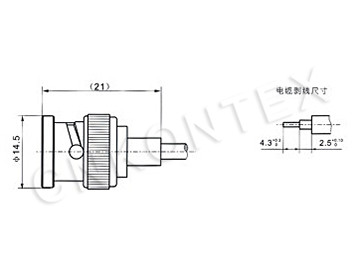

| Outer dimension | 21*15mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 1500pc/plastic bag in separate carton |
