Electrical Performance of RF Microwave Coaxial Connector
|
Parameter |
Value |
|
Article No. |
L29-KFSJ2 |
|
Frequency range |
DC ~6GHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.50 |
|
Withstanding Voltage |
4000V |
|
Insulation resistance |
5000MΩ |
|
Connector Type |
L29-male interface |
|
Standard |
IEC60169-4 |
Mechanical Performance of L29/716 RF Connector
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|

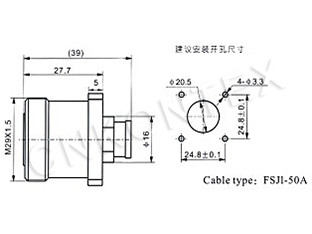

Outer Dimension |
39*32*32mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-65℃～+165℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Nickeling |
|
Dielectric |
PTFE |
/ |
|
Salt Mist |
|
96H |
Packing of L29/716 RF Connector
|
Standard |
100pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±2%.
The L29/716 RF Connector (often referred to as the 7/16 DIN L29 connector) is a type of coaxial RF connector designed primarily for high-frequency signal transmission with a characteristic impedance of 50 ohms. Its name derives from the connector’s dimensions: a 7 mm outer diameter inner contact and a 16 mm inner diameter outer contact.
Key Characteristics:
Coupling Mechanism: Threaded screw coupling for secure and vibration-resistant connections.
Impedance: 50 ohms, suitable for RF applications.
Frequency Range: Operates efficiently up to 7.5 GHz.
Power Handling: Supports up to 3 kW of RF power.
Durability: Designed for over 500 mating cycles.
Weather Resistance: IP67/IP68 rated for dust and water ingress protection.
