Electrical Performance of RF Coaxial Adapter L29 7/16
|
Parameter |
Value |
|
Article No. |
L29-J7 |
|
Frequency range |
DC ~6GHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.50 |
|
Withstanding Voltage |
4000V |
|
Insulation resistance |
5000MΩ |
|
Connector Type |
L29-male interface |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|

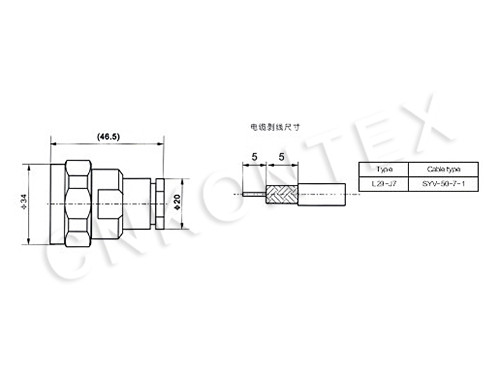

Outer Dimension |
47*35mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-65℃～+165℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Nickeling |
|
Dielectric |
PTFE |
/ |
|
Salt Mist |
|
96H |
Packing of Conector L29 DIN 7-16
|
Standard |
100pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±2%.
Features and Functions of the L29/716 RF Connector
1. High Power Handling
The L29/716 connector supports high RF power levels, making it suitable for base station antennas, broadcast transmitters, and microwave communication systems.
2. Low Intermodulation Distortion (IMD)
Manufactured using precision engineering and materials like tri-metal plating (copper, tin, and zinc), the connector minimizes IMD, ensuring signal clarity in multi-carrier environments.
3. Superior Shielding
The robust design provides excellent shielding against EMI and RFI (radio frequency interference), maintaining signal integrity.
4. Durability and Reliability
With nickel or gold plating and high-quality brass bodies, these connectors resist corrosion and mechanical wear, ensuring longevity even in harsh outdoor conditions.
5. Impedance Matching
The 50-ohm impedance ensures minimal signal reflection and loss, critical for maintaining high-quality RF transmission.
6. Weatherproof Design
Many L29/716 connectors feature sealing gaskets and silicone O-rings for IP68-rated waterproofing, making them ideal for outdoor installations exposed to moisture and dust.
