Electrical Performance of L29/716 RF Connector
|
Parameter |
Value |
|
Article No. |
L29-50KFDG |
|
Frequency range |
DC ~6GHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.50 |
|
Withstanding Voltage |
4000V |
|
Insulation resistance |
5000MΩ |
|
Connector Type |
L29 female interface |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|

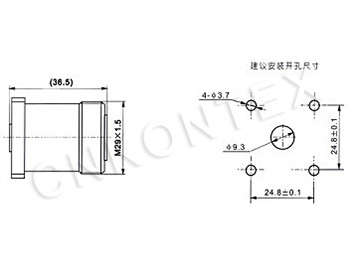

Outer Dimension |
37*32*32mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-65℃～+165℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Nickeling |
|
Dielectric |
PTFE |
/ |
|
Salt Mist |
|
96H |
Packing of L29 DIN 7-16 Connector
|
Standard |
100pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±2%.
Applications of L29/716 RF Connector
The versatility of the L29/716 connector makes it indispensable across various industries:
Telecommunications: Used extensively in cellular base stations for connecting antennas and RF feeders.
Broadcast Media: Facilitates connections in TV and radio transmission systems.
Wireless Networks: Ensures robust signal transmission in Wi-Fi, microwave links, and satellite communication.
Military and Aerospace: Due to its durability and low signal loss, it is favored in defense communication systems.
Industrial: Used in high-power RF equipment and testing apparatus.
Proper installation and maintenance are crucial to maximize the connector's lifespan and maintain signal quality in these applications.
