Electrical Performance of Smp Right Angle Connector
|
Parameter |
Value |
|
Article No. |
SMP-KWB2-3 |
|
Frequency range |
0~12.4GHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.3 |
|
Withstanding Voltage |
1000V |
|
Rated Power |
100W |
|
Connector Type |
SMP-Women interface |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|

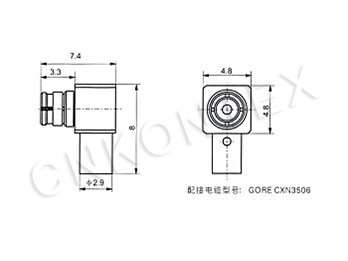

Outer Dimension |
7.4*8*4.8mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-40℃～+125℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Silver |
|
Dielectric |
PTFE |
/ |
|
Salt Mist |
|
96H |
Packing of Right Angle SMP RF Connector
|
Standard |
3600pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±2%.
Kontex Electronics presents the KTX SMP-KWB2-3 SMA right angle RF coaxial connector, a high-quality component designed for optimal performance in RF and microwave systems. This 90-degree connector offers exceptional durability, precision, and reliability for high-frequency signal transmission up to 12.4GHz. With a VSWR ≤1.3 and 50Ω impedance, it's ideal for telecommunications, test equipment, and military applications. Our SMA right angle connector features gold-plated center conductor and silver-plated outer conductor for superior conductivity and corrosion resistance. Discover why Kontex is the trusted choice for precision RF connectors.
