Electrical Performance of Sma Female Connector
|
Parameter |
Value |
|
Article No. |
SMP-KY-3506 |
|
Frequency range |
0~12.4GHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.3 |
|
Withstanding Voltage |
1000V |
|
Rated Power |
100W |
|
Connector Type |
SMP-Women interface |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|

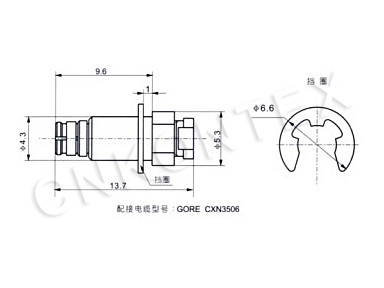

Outer Dimension |
13.7*6.6mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-40℃～+125℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Silver |
|
Dielectric |
PTFE |
/ |
|
Salt Mist |
|
96H |
Packing of SMP-Type Connectors
|
Standard |
3600pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±2%.
Kontex Electronics presents the high-performance SMA Female Straight Connector KTX SMP-KY-3506, designed for reliable RF signal transmission. This SMA female RF connector offers excellent electrical performance with a frequency range of 0~12.4GHz, 50Ω impedance, and VSWR ≤1.3. Withstanding voltage of 1000V and rated power of 100W, it provides low insertion loss and superior mechanical stability. Made with high-quality materials including brass center conductor with gilding and brass outer conductor with silver plating, this SMA connector ensures durability and performance. Customized solutions available from our China-based manufacturing facility.
