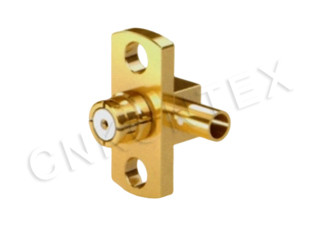

An SMP (SubMiniature version P) right angle connector is a type of coaxial RF connector designed to connect coaxial cables or printed circuit boards (PCBs) at a 90-degree angle. Unlike straight SMA connectors, the right angle design facilitates compact installations where space constraints or cable routing require a bend without compromising performance.
| Parameter | Value |
| Article No. | SMP-KWF-3506 |
| Frequency range | 0~12.4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 1000V |
| Rated Power | 100W |
| Connector Type | SMP-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

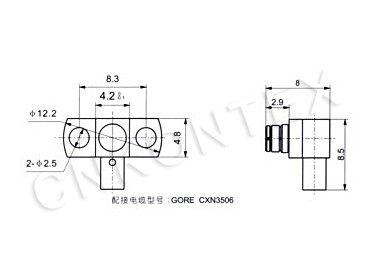

| Outer Dimension | 8*12.7*8.5mm |
| Parameter | Value |
| Operating temperature range | -40℃～+125℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
