SMP right angle connectors can terminate to coaxial cables, PCBs, or terminals, making them highly versatile for different system architectures.The 90-degree bend enables routing cables in tight spaces without sharp bends, reducing mechanical stress on solder joints and cables. This is especially valuable in compact RF modules, base stations, and antenna arrays.
| Parameter | Value |
| Article No. | SMP-KW3 |
| Frequency range | 0~12.4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 1000V |
| Rated Power | 100W |
| Connector Type | SMP-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

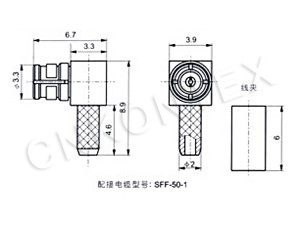

| Outer Dimension | 6.7*8.9*4.8mm |
| Parameter | Value |
| Operating temperature range | -40℃～+125℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
