One of the most common adaptations in RF systems is the BMA female to SMA female adapter. This adapter connects the BMA series with the SMA (SubMiniature version A) connectors, allowing compatibility between different equipment or modules.
| Parameter | Value |
| Article No. | BMA-KYD1 |
| Frequency range | 0 ~ 12GHz |
| Impedance | 50±1.5Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 1000V |
| Rated Power | 100W |
| Connector Type | BMA-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

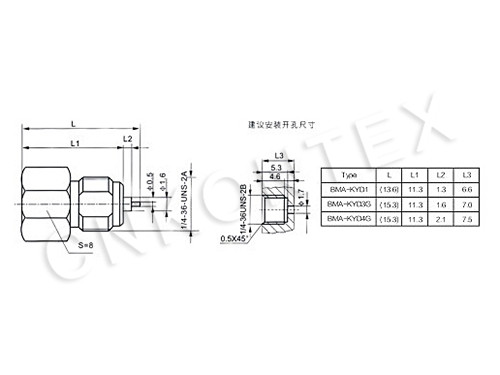

| Outer Dimension | 16*9mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 5000pc/plastic bag in separate carton |
