BMA female connectors offer a combination of electrical, mechanical, and environmental advantages that make them ideal for demanding RF applications.perate efficiently from DC up to 22 GHz, making them suitable for microwave and millimeter-wave systems.Example: VSWR as low as 1.2:1 ensures minimal signal reflection and loss.push-On Coupling Mechanism.
| Parameter | Value |
| Article No. | BMA-KFD2 |
| Frequency range | 0 ~ 12GHz |
| Impedance | 50±1.5Ω |
| VSWR | ≤1.3 |
| Withstanding Voltage | 1000V |
| Rated Power | 100W |
| Connector Type | BMA-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

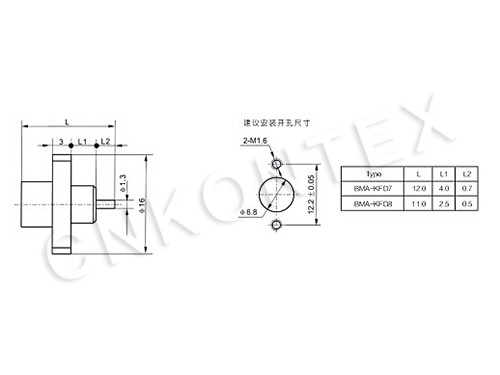

| Outer Dimension | 12*16*6mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 5000pc/plastic bag in separate carton |
