A BNC solder connector is a type of Bayonet Neill–Concelman (BNC) connector designed for coaxial cables, featuring a solder cup termination style. This means the center conductor of the coaxial cable is soldered directly to the connector’s contact, providing a secure and low-resistance electrical connection.BNC connectors are designed to minimize signal loss and interference.
| Parameter | Value |
| Article No. | BNC-75KFD |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding Voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector Type | BNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

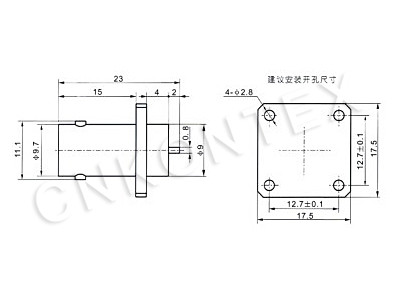

| Outer Dimension | 23*17.5*17.5mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt Mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
