Electrical Performance
|
Parameter |
Value |
|
Article No. |
BNC(S)-KY2-2 |
|
Impedance |
50Ω |
|
VSWR |
≤1.50 |
|
Withstanding Voltage |
1500V |
|
Insulation Resistance |
5000MΩ |
|
Connector Type |
BNC female interface |
|
Standard |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree |
NO |
|
Moisture resistance |
NO |
|
Mating cycles |
≥500 |
|
Outer Dimension |
29*15mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range |
-30℃～+120℃ |
|
Storage temperature range |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor |
Brass |
Gilding |
|
Outer conductor |
Brass |
Nickeling |
|
Dielectric |
PTFE |
/ |
|
Salt mist |
|
96H |
Packing
|
Standard |
1500pc/plastic bag in separate carton |

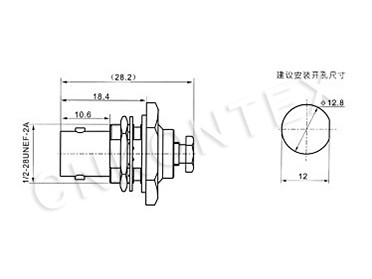

Remark：Dimensions are in mm with tolerance of ±2%.
