The BNC panel jack for PCB mount is a vital component for reliable RF connectivity in countless applications. Understanding the different types, specifications, and installation best practices enables engineers and designers to select the perfect connector tailored to their project needs.
| Parameter | Value |
| Article No. | BNC(M)-KY-3 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | BNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

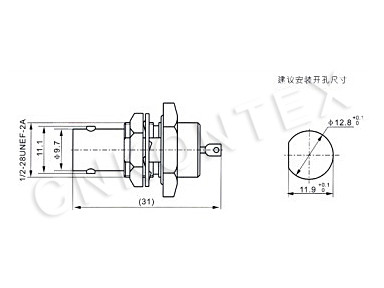

| Outer dimension | 31*15mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 1500pc/plastic bag in separate carton |
