The BNC RF connector is a miniature coaxial connector used primarily for RF signal connections. Its defining feature is the bayonet locking coupling, which allows for quick and secure attachment and detachment without the need for special tools. Designed to maintain consistent impedance, BNC connectors come in 50 ohm and 75 ohm versions, supporting frequencies up to 4 GHz, making them ideal for a wide range of RF applications.
| Parameter | Value |
| Article No. | BNC-KY3Y |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | BNC male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

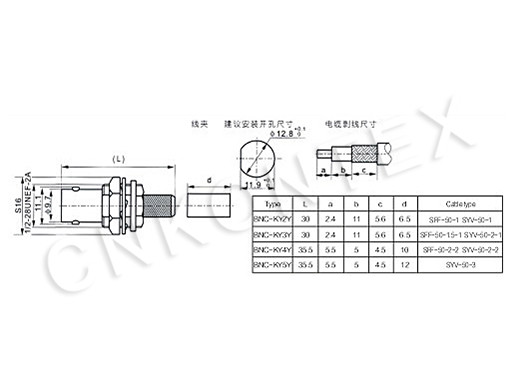

| Outer dimension | 36*16mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 1500pc/plastic bag in separate carton |
