A PCB mount coaxial connector is a type of RF connector designed to be soldered or mechanically attached directly onto a printed circuit board. These connectors provide a reliable interface between the PCB and coaxial cables, enabling high-frequency signals to pass with minimal interference or loss.
| Parameter | Value |
| Article No. | BNC-75KHD3 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | BNC female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

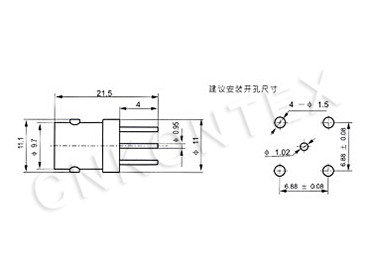

| Outer dimension | 21.5*12*12mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 2000pc/plastic bag in separate carton |
