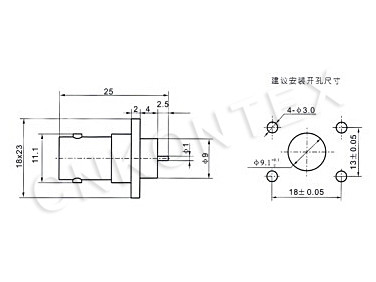

A BNC Panel Mount Jack Connector is a type of coaxial connector designed to be mounted on panels or bulkheads. It features a female jack configuration with a bayonet coupling mechanism that allows for quick, secure mating and un-mating of cables. These connectors are engineered to maintain signal integrity in RF (radio frequency) applications, commonly supporting 50 ohm or 75 ohm impedance systems.
| Parameter | Value |
| Article No. | BNC-KFD5 |
| Frequency range | 0 ~ 4GHz |
| Impedance | 50Ω |
| VSWR | ≤1.50 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | BNC male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |
| Outer dimension | 25*23*18mm |
| Parameter | Value |
| Operating temperature range | -30℃～+120℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
