What is an N Female Panel Mount Connector?

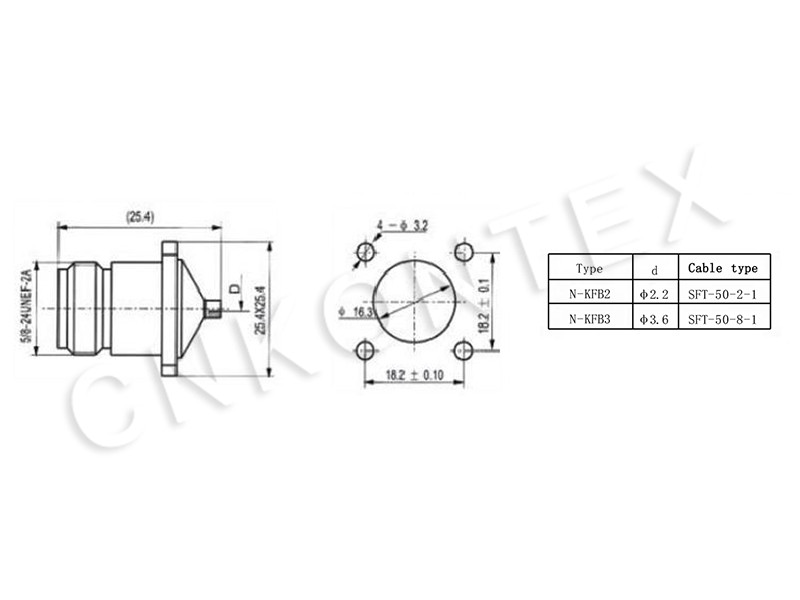

The N female panel mount connector is a type of coaxial RF connector designed for secure, threaded coupling with coaxial cables, typically offering 50-ohm impedance. It is characterized by its female jack interface and panel mount design, which allows it to be fixed firmly on equipment panels or enclosures using a flange with multiple mounting holes (commonly 4-hole flange).
Originally developed by Bell Labs in the 1940s, the N connector combines rugged construction with excellent electrical performance, making it ideal for demanding environments where vibration resistance, weatherproof sealing, and consistent signal integrity are critical.
Advantages of Using N Female Panel Mount Connectors
Robust and Weatherproof Design
The threaded coupling and durable materials make the N female panel mount connector highly resistant to mechanical stress and environmental factors such as moisture, dust, and temperature extremes.
Wide Frequency Range
Supporting frequencies up to 11 GHz (and even 18 GHz in precision models), these connectors are suitable for a broad range of RF applications, from basic communications to advanced radar and satellite systems.
Versatility and Compatibility
Compatible with various coaxial cables like RG58, RG141, LMR-195, and others, these connectors can be used in numerous setups including WLAN, broadcast, surge protection, and instrumentation.
Secure and Repeatable Connections
The panel mount flange and threaded coupling ensure stable connections that maintain signal integrity even in high-vibration environments.
Customization Options
Many manufacturers offer customizable specifications such as different plating, mounting styles, and termination methods (crimp, solder, clamp) to meet specific application requirements.
