An N Male Crimp Connector is a type of coaxial RF connector designed to terminate coaxial cables securely using a crimping method. The "N" refers to the connector series, which is characterized by a threaded coupling mechanism that ensures a durable and weatherproof connection. The "male" designation indicates the connector’s pin configuration, which plugs into a corresponding female connector.
| Parameter | Value |
| Article No. | N-J3Y |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | N-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

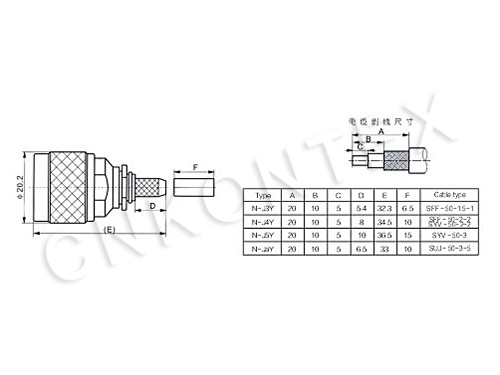

| Outer dimension | 37*21mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
