The N Male Connector is a threaded, medium-sized coaxial RF connector designed to join coaxial cables and ensure efficient signal transmission at microwave frequencies. Invented in the 1940s by Paul Neill of Bell Labs, the N connector was among the first connectors capable of handling microwave frequencies, making it a staple in RF communications and instrumentation. The N Male Connector is known for its robust mechanical design, weatherproof capabilities, and excellent electrical properties.

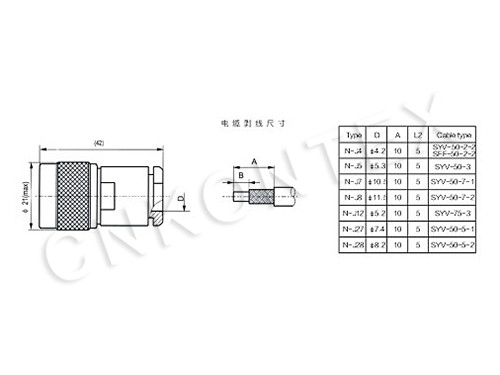

| Parameter | Value |
| Article No. | N-J4 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | N-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | IP67 |
| Moisture resistance | NO |
| Mating cycles | ≥500 |
| Outer dimension | 42*21mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 200pc/plastic bag in separate carton |
