The N Type solder RF connector is a medium-sized coaxial RF connector designed for 50-ohm impedance applications. It is renowned for its threaded coupling mechanism, which ensures secure, low-noise, and vibration-resistant connections. Unlike crimp or clamp connectors, solder-type N connectors use soldering as the attachment method, offering excellent electrical continuity and mechanical strength, especially in high-frequency applications.
| Parameter | Value |
| Article No. | N-KF3A |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | N-female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

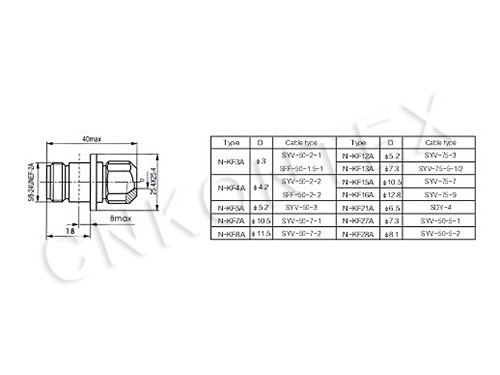

| Outer dimension | 40*25.4*25.4mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 300pc/plastic bag in separate carton |
