A Right Angle Coaxial Connector is a type of RF connector designed with a 90-degree bend in its body. This design facilitates cable routing in tight or constrained spaces, such as behind equipment racks, inside compact enclosures, or on PCBs where vertical space is limited. Unlike straight connectors, right angle connectors reduce cable strain and prevent kinking, which can degrade signal quality over time.
| Parameter | Value |
| Article No. | N-JW5Y |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | N-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

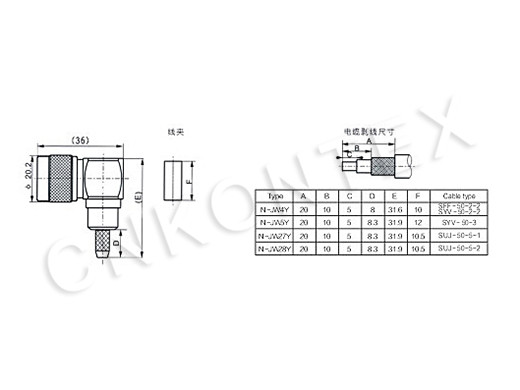

| Outer Dimension | 36*32*21mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
