In the fast-evolving world of RF and microwave communications, ensuring reliable and efficient connections between different types of connectors is critical. One such vital component is the N to SMA adapter, a versatile coaxial connector adapter widely used across various industries, including telecommunications, radar systems, satellite communications, and wireless networks. Whether you are a design engineer, technician, or RF system integrator, understanding the features, benefits, and applications of N to SMA adapters can significantly enhance your project’s performance and reliability.
| Parameter | Value |
| Article No. | N/SMA(S)-KYK |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1000V |
| Insulation resistance | 5000MΩ |
| Connector type | N-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

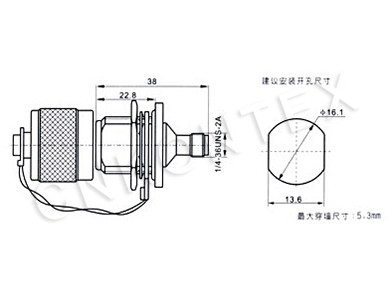

| Outer dimension | 38*22mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 400pc/plastic bag in separate carton |
