In the rapidly evolving world of telecommunications, electronics, and RF (radio frequency) applications, reliable and efficient connectors are crucial. One such connector that stands out for its precision, durability, and performance is the SMA Male Straight Connector. Whether you’re building communication base stations, testing measurement equipment, or working on instrumentation, understanding the features and benefits of this connector will help you make informed decisions for your projects.
| Parameter | Value |
| Article No. | SMA-JWB2 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

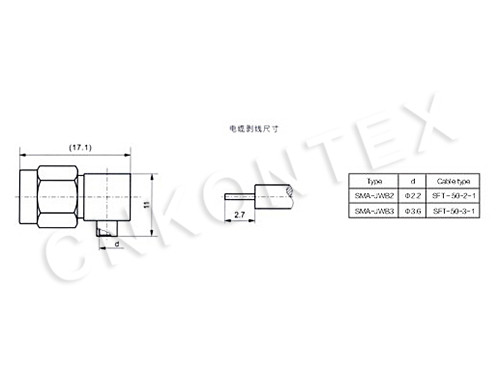

| Outer dimension | 17*11*9mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
