The SMA Female Straight Connector is a type of sub-miniature coaxial RF connector designed to provide a secure and reliable connection for coaxial cables, PCBs, and terminals. SMA stands for SubMiniature version A, characterized by its threaded coupling mechanism, which ensures mechanical stability and excellent electrical performance up to frequencies of 18 GHz and beyond.
| Parameter | Value |
| Article No. | SMA-KB2 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

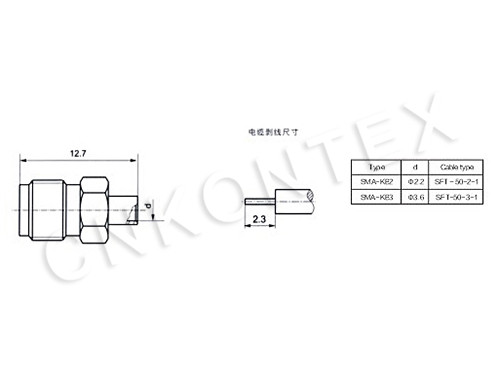

| Outer dimension | 12.7*9mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
