An SMA (SubMiniature version A) right angle connector is a type of coaxial RF connector designed with a 90-degree bend in its body. This design allows for connections in tight or confined spaces where a straight connector would be impractical or cause cable stress. SMA connectors are known for their screw-type coupling mechanism, which ensures a secure and stable connection with minimal signal loss.
| Parameter | Value |
| Article No. | SMA-JWHD |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

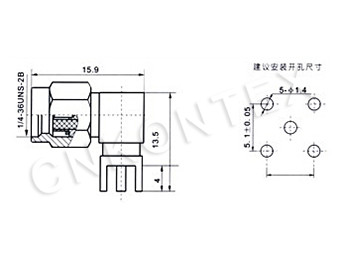

| Outer dimension | 16*18*6.5*6.5mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 3000pc/plastic bag in separate carton |
