Overview of MCX Connectors
The MCX (Micro Coaxial) connector is a small RF coaxial connector designed for quick snap-on coupling and operates efficiently in frequencies up to 6 GHz. It features a 50-ohm impedance and is widely used in applications such as GPS antennas, wireless communication devices, and broadcast equipment. MCX connectors are approximately 30% smaller than SMA connectors, making them suitable for compact devices.
Introduction to MMCX Connectors
The MMCX (Micro-Miniature Coaxial) connector is essentially a smaller variant of the MCX connector. It provides a 50-ohm impedance interface with broadband capability from DC to 6 GHz and features a snap-on coupling mechanism for secure and fast connections. MMCX connectors have a smaller footprint than MCX connectors, making them ideal for miniaturized wireless devices such as laptops, GPS modules, and medical instrumentation.
Why Use MCX to MMCX Connectors?

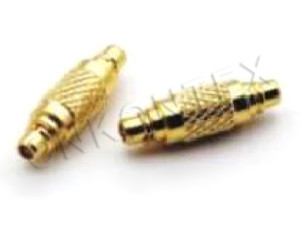

MCX to MMCX connectors serve as adapters or cable assemblies that bridge the gap between MCX and MMCX interfaces. Given their prevalence in modern RF systems, these connectors are indispensable for:
Ensuring Compatibility: Allowing devices with different connector types to interface without signal degradation.
Maintaining Signal Integrity: Minimizing insertion loss and impedance mismatch.
Facilitating Easy Installation: Featuring snap-on or push-on coupling for quick connect/disconnect.
Supporting Compact Designs: Enabling miniaturization without compromising performance.
