The MCX (Micro Coaxial) connector is a miniature RF coaxial connector developed in the 1980s, standardized under the European CECC 22220 specification. It was designed to provide a smaller alternative to the SMB connectors, reducing size by approximately 30% while maintaining the same inner contact and insulator dimensions.
| Parameter | Value |
| Article No. | MCX-KY |
| Frequency range | 0 ~ 6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 750V |
| Rated power | 1000W |
| Connector type | MCX-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

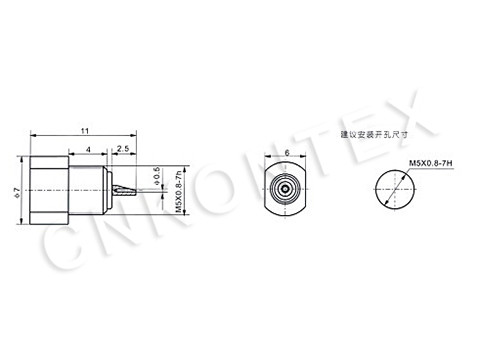

| Outer dimension | 11*7mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 5000pc/plastic bag in separate carton |
