In today’s fast-evolving world of RF technology and telecommunications, choosing the right connector is paramount for ensuring signal integrity, compact design, and ease of installation. Among the many options available, the MCX connector stands out as a versatile, reliable, and space-saving solution widely used in RF PCB applications.
| Parameter | Value |
| Article No. | MCX-KHD-2 |
| Frequency range | 0 ~ 6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 750V |
| Rated power | 1000W |
| Connector type | MCX-Women interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

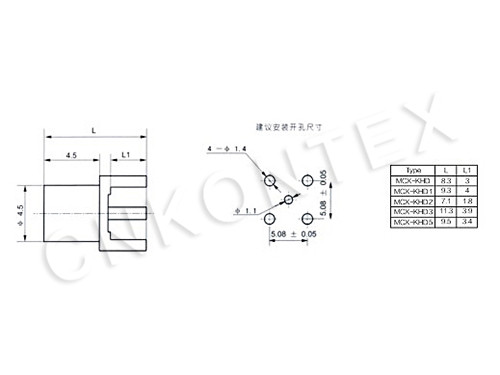

| Outer dimension | 12*6*6mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 5000pc/plastic bag in separate carton |
