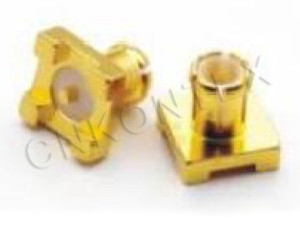

MCX (Micro Coaxial) and MMCX (Micro-Miniature Coaxial) connectors are ultra-compact RF connectors widely used for high-frequency applications. Both connectors support a characteristic impedance of 50 ohms and operate effectively in frequency ranges up to 6 GHz, making them ideal for modern wireless and RF systems.
MCX Connectors measure approximately 3.6 mm in diameter and feature a snap-on coupling mechanism, offering quick connect/disconnect functionality.
MMCX Connectors are even smaller at around 2.4 mm diameter, with a similar snap-on design but allow 360-degree rotation after mating, providing flexibility in tight spaces.
Their micro-miniature size and reliable snap-on coupling make these connectors perfect for applications where space is limited and frequent mating cycles are required.
