What is an MMCX Coaxial Connector?
The MMCX (Micro-Miniature Coaxial) connector is a type of RF coaxial connector designed to provide a secure, reliable connection in a very small form factor. Originating as a smaller alternative to the MCX connector, MMCX connectors feature a 50-ohm impedance interface and support broadband frequencies from DC up to 6 GHz. One of the defining characteristics of MMCX connectors is their snap-on coupling mechanism, which allows quick connect and disconnect with a secure locking system that even supports 360-degree rotation.

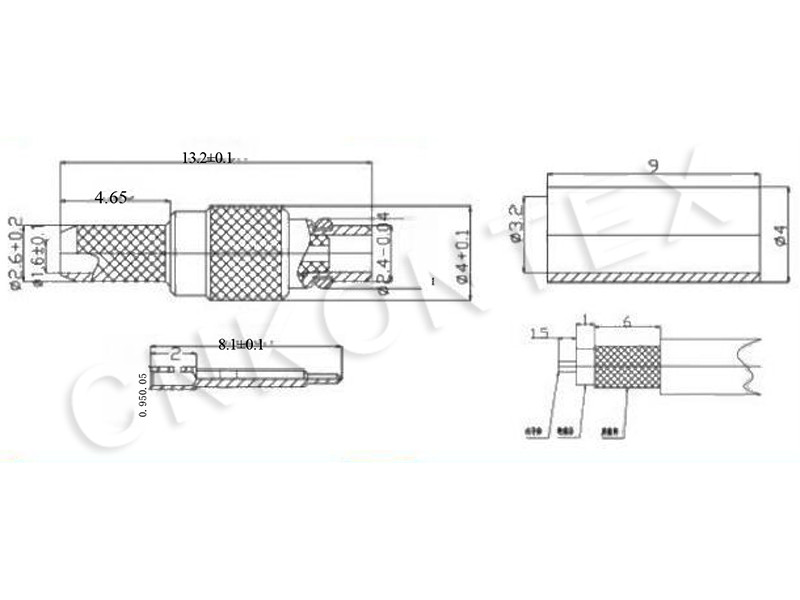

Key Features and Benefits of MMCX Connectors
1. Compact Size and Lightweight Design
MMCX connectors have a diameter of approximately 2.5 mm, making them about 30% smaller than MCX connectors.
Their miniature size allows integration into densely populated electronic assemblies, ideal for space-constrained devices such as PDAs, GPS receivers, and mobile phones.
2. Broadband Performance
Operates efficiently across a wide frequency range from DC to 6 GHz, supporting modern wireless communication standards.
Low reflection and insertion loss ensure signal integrity, critical in high-frequency applications.
3. Snap-On Locking Mechanism
The push-on coupling provides secure mating with low engagement force (< 30 N) and disengagement force (> 8 N initially), ensuring reliable connections even in vibration-prone environments.
Allows for 360-degree rotation without signal degradation, enhancing flexibility during installation and maintenance.
4. High Durability
Rated for a minimum of 100 to 500 mating cycles depending on specific product versions.
Meets rigorous environmental standards including MIL-STD-202 for thermal shock, corrosion resistance, vibration, and moisture resistance.
5. Cost-Effective Solution
MMCX connectors provide a high-quality RF connection at a relatively low cost compared to other miniature RF connectors like SMP.
Their ease of use reduces installation time, saving labor costs and minimizing downtime.
