The Type N Panel Mount Female Connector remains a cornerstone in RF PCB design and high-frequency system integration due to its excellent electrical performance, mechanical durability, and environmental resilience. Whether you are developing wireless infrastructure, satellite communications, or test equipment, choosing the right Type N connector ensures signal integrity and long-term reliability.
| Parameter | Value |
| Article No. | N-50JFD7 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | N-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

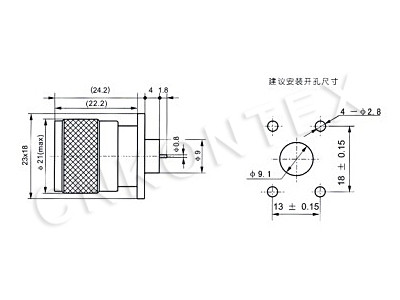

| Outer dimension | 30*23*18mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 500pc/plastic bag in separate carton |
