The N Solder RF Connector is a type of coaxial connector designed for RF applications, characterized by its threaded coupling mechanism and solder termination style. It is engineered to provide 50-ohm impedance with excellent electrical performance across a broad frequency range, typically from DC up to 11 GHz or higher depending on the specific model. These connectors are known for their robust mechanical design and weatherproof capabilities, making them ideal for both indoor and outdoor use.
| Parameter | Value |
| Article No. | N-KYB2 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | N-female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

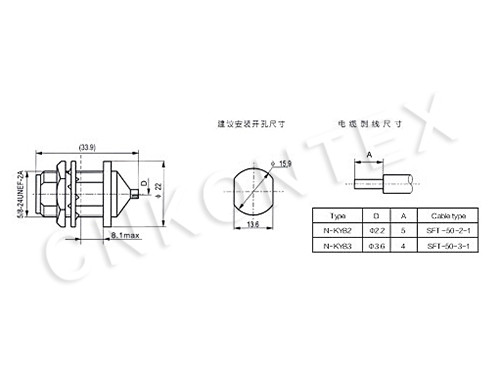

| Outer dimension | 40*22mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Nickeling |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 400pc/plastic bag in separate carton |
