An SMA (SubMiniature version A) female flange mount connector is a type of coaxial RF connector designed for panel or bulkhead mounting. Featuring a threaded coupling mechanism, it ensures secure and low-loss connections in RF systems. The flange mount style, typically with 4 holes (candlestick or flat tab style), allows for stable and durable attachment to panels or enclosures, which is essential in environments subject to vibration or mechanical stress.
| Parameter | Value |
| Article No. | SMA(S)-KFD-7 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA- interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

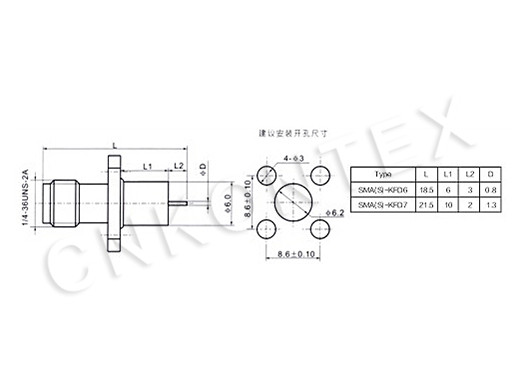

| Outer dimension | 21.5*12.7*12.7mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 2000pc/plastic bag in separate carton |
