In the fast-evolving world of RF communication and PCB design, the SMA Male Right Angle Connector stands out as a critical component for ensuring reliable, high-frequency signal transmission. Whether you're working on telecommunications infrastructure, wireless systems, or precision instrumentation, understanding the features, benefits, and applications of this connector can significantly enhance your project’s performance and durability.

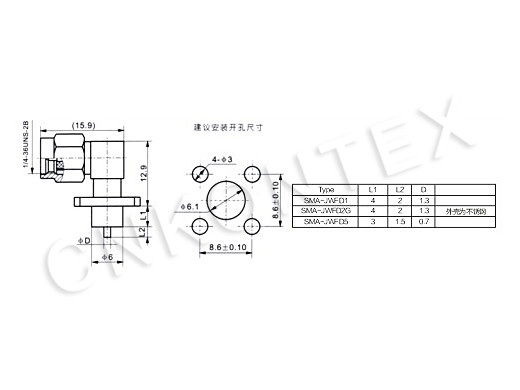

| Parameter | Value |
| Article No. | SMA-JWFD |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |
| Outer dimension | 16*19*12.7*12.7mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 2000pc/plastic bag in separate carton |
