In today’s rapidly evolving world of wireless communications, broadcasting, and high-frequency signal transmission, RF coaxial connectors play a pivotal role. These specialized connectors ensure seamless connection between coaxial cables and devices, maintaining signal integrity, minimizing interference, and enabling reliable data transfer across various industries. Whether you're working on base stations, antenna systems, or test instruments, understanding the types, characteristics, and applications of RF coaxial connectors is crucial for optimal performance.
| Parameter | Value |
| Article No. | SMA-KF3-6 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA-female interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

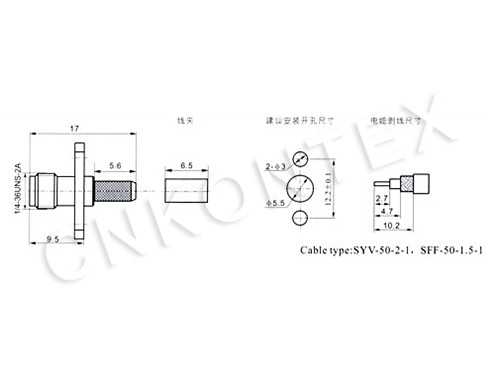

| Outer dimension | 17*14*6mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
